Specifications
• Current rating :9.2A Max.per pin.
• Voltage rating : 12V .
• Contact Resistance: 6mΩ Max.
• Insulation Resistance:1000MΩ at 500V DC.
• Durability: 50 Cycles
• Mating force：0.71 kg Max. per pin.
• Unmating force: 0.14 kg Min. per pin.
• Latch to Ramp Yield Strength: 45N Min.
• Temperature Rise : Mate connectors Temperature Rise:30℃ Max.
• Halogen Free
Overview/Description

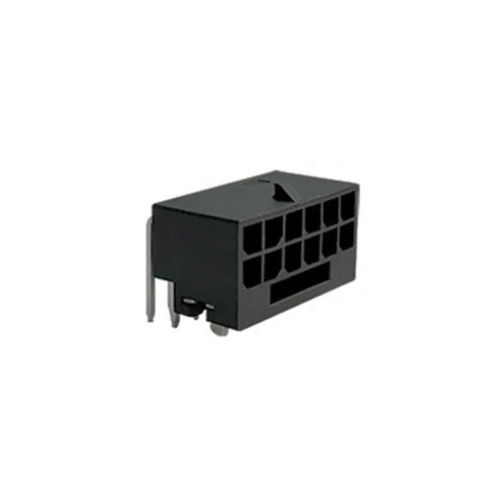

12V-2x6(H++) high Current Terminal connector includes 6 pairs of power supply pins and 4pin of signal lines.
Applications Target Markets
GPU Card
AI Server
Server
Workstation
High Performance Computing (HPC)
