Specifications
• Pitch: 1.0mm
• Contacts: 164pin
• Orientation: Vertical
• Durability Rating: 50 cycles min.
• PCB Insertion Force: 1.15 N max. per contact pair
• PCB Removal Force: 0.15 N min. per contact pair
• RoHS Compliance
• 16X standard links as per PCI-SIG CEM specification footprint compatible
Overview/Description

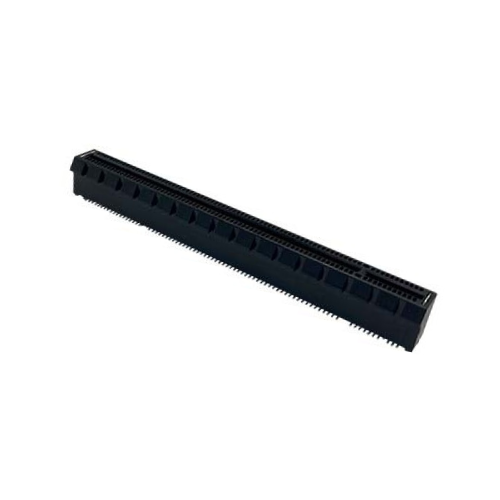

• PCIe Card Edge Connectors
• PCIe Gen6
• SMT Type
* Samples available upon request.Applications Target Markets
Servers
Workstations
Desktop PCs
Routers
Switches
Base Stations
Embedded Systems
