Specifications
• Pitch(mm): 0.6
• Number of Contacts : 168
• Orientation: Right Angle
• Current Rating: 1.1 A /pin up to 12 pins.
• Voltage Rating: 29 V
• Dielectric Withstanding Voltage: 300 V
• Durability: 200 Cycles for 0.76um Au plated
• Contact Area Finish: Gold over Nickel
• Temperature Range - Operating: -40°C to +85°C
Overview/Description
• Meets SFF-TA-1002, GEN Z, EDSFF and OCP NIC 3.0 specification
• PCIe Gen5

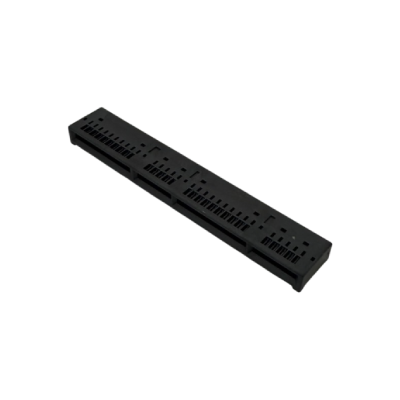

• Right Angle Receptacle
• SMT Type
* Samples available upon request.
Applications Target Markets
AI Server
Server
Workstation
High-Performance Computing (HPC)
