Power Connectors

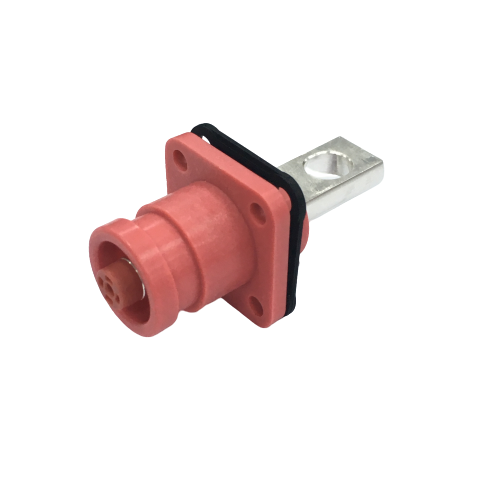

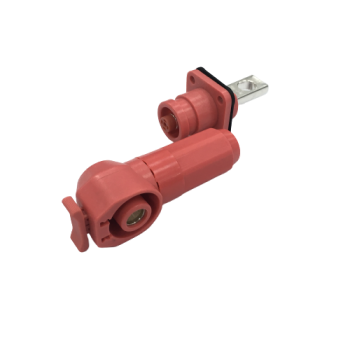

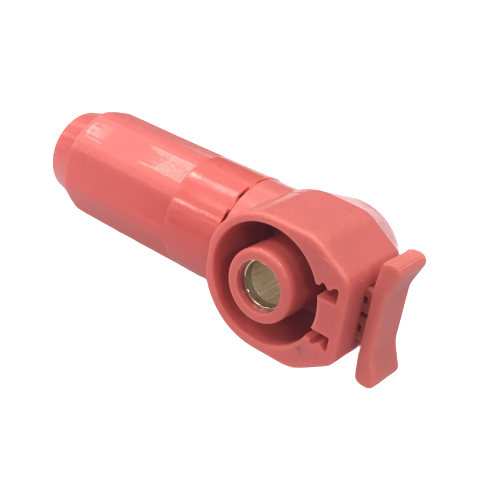

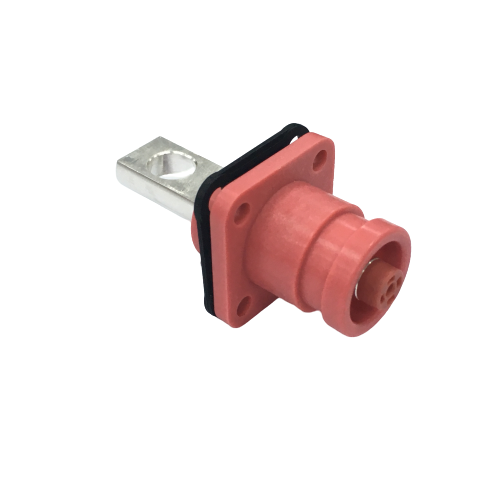

PSL200 High Power Connector

Overview/Description

PSL200 is a plastic high current connector used for the connection between battery packs for the applications in BMS and energy storage.
PSL200 Connector Drawing.zip

Specifications

1. Material (Metal/Plastic) : Plastic
2. Number of Positions : 1
3. Rated Current : 150A / 200A
4. Rated Voltage : 1500V DC
5. Termination : M8 Busbar Lug of Socket & Crimp for Plug
6. Color : Black / Orange
7. Fasten Style (Front/Rear) : Front
8. Adopt Cross-Section Area of Wire : 35mm2 / 50mm2

Applications
Target Markets

High Power Application
Energy Storage System
