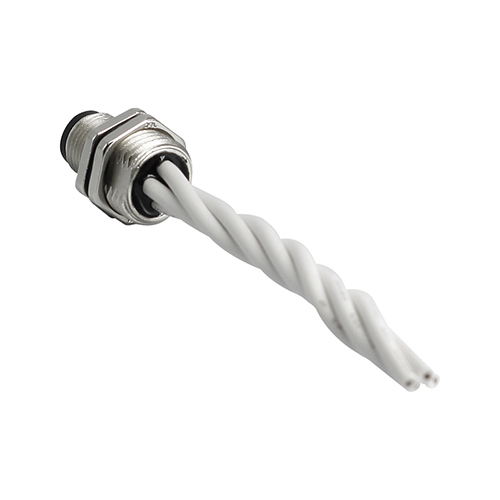

M12 S Code Receptacle With Wire

M12 S Code

Specifications

1. Alternate Position(Code): S

2. Shell Size: M12

3. Mounting Thread Size(Receptacle Screw Size): M16

4. Material: Metallic

5. Shielding: Non-Shielded

6. Pin/Pos No.: 2+PE/3+PE

7. Connector Type: Receptacle With Wire

8. Connector Gender: Male

9. Contact Gender: Male

10. Current Rating: 12A

11. Operating Voltage: 630V AC/DC

12. Back Shell: Straight

13. Fasten Style By Nut: Rear

14. Mating Style: Screw

15. IP Rating: IP67

16. Mated/Unmated Waterproof: Mated

17. Wire/Cable Spec.: UL 10070

18. Wire Gauge: 16 AWG

19. Outer Jacket Material: PVC

20. Wire/Cable Length(mm): 150/300/500

Downloads

JPC M12 S code Receptacle With Wire 2D Drawings.pdf

Overview/Description

The M series is meticulously engineered for industrial process measurement and control, meeting IEC standards for optimal performance and reliability. It offers secure data transmission and excellent power transmission, making it a trusted choice in various industrial environments.


Additionally, the M series is ideal for compact designs where environmental protection and stable connections are crucial, ensuring it meets diverse user needs without compromising performance or safety.

Applications Target Markets

1. Industrial Automation

2. Robotics

3. Industrial Control/Measurement System

4. Machine Tools

5. Sensor

6. Servo Motor

7. PLC

8. Machine Vision

9. Robotic Arm

10. LiDAR

11. Autonomous Guided Vehicle

12. Conveyor System
